Database Management System (CS403)

                                     Database Management System (CS403)
Assignment No.1
Total Marks: 10
Deadline
Your assignment must be uploaded before or on 9th November 2012.
Rules for Marking
It should be clear that your assignment will not get any credit if:
1. The assignment is submitted after due date
2. The assignment is copied
Objectives
The objectives of this assignment are,
1. Giving the idea of the most common tool used for designing database systems i.e. Data Flow Diagram. It is used to design systems graphically and expresses different details of system in different DFD levels.
2. To become familiar with the flow of data between different processes and to hide complexities in any given system.


Assignment
Introduction:
In this course we are going to develop a complete physical database for “Trade Management System” that will computerize all the necessary Trade Management processes for a small business shop, BEST Mart. For this we will divide this whole project in small 4 to 5 assignment chunks and will try to cover every phase of database development life cycle from scratch to execution. Scenario for the Trade Management System is given below.
There exists a BEST Mart- a shopping centre, whose owner wants to computerize his business by developing Trade Management System. For this, owner hires a Database Administrator and put up a real world scenario and requirements as given below:
Trade Management System permits users to proficiently initiate and evaluate the process of requirement for the BEST Mart. Procedure begins when a client comes to BEST Mart, selects the cart and place the things in cart and goes towards salesman. The salesman examines the code of each selected item. On entry system will display invoice with some details like name of the product, its related magnitude/quantity and total sales line items along with total bill. After placing order, client will ahead to accountant counter to pay bill.
Trade Management System will support both types of customers, Registered and Non-Register. For Registered customers it is necessary for system to check whether he/she is on credit bases or not. For non-registered customers, it must have to be registered only bythe Owner of the BEST Mart. Information about number of creditors and debtors are known by the accounts department.
System will show flexibility in a sense that it should accept all payment methods i.e. cash, credit and cash with credit.
Same is the scenario with Administrator/Owner of BEST Mart to purchase items from different vendors on cash, credit or combination of two. The stock department and Sale department will need to generate reports about stock status sale in different time span.
Task Description:
This Assignment is starting phase and in this assignment you will focus only on the tasks given below:
1. You are required to identify all the processes in the system.
2. You are required to mention all the data stores in which data is stored.
3. Find out all the external entities interacting with the system
4. Create a Context level DFD
5. Create a level zero DFD
6. Create a detailed DFD of every process if needed
You have to perform all these steps give above in your solution file.
Note:
Use all concepts you have studied so far and techniques discussed particularly in lecture 5 and 6 regarding this assignment.
Drawing Final Data Flow Model:
You can use any tool for drawing like MS Office or Visio.
Important things to consider:
1. As happens in real world that everyone visualize a problem in different way so the solutions of all students should be according to their own thinking not taken from some source.
2. As this is preliminary phase of our system so it is recommended that you identify as much processes and their relationships as you can (some of them may be eliminated in coming assignments).

                                      Solution:

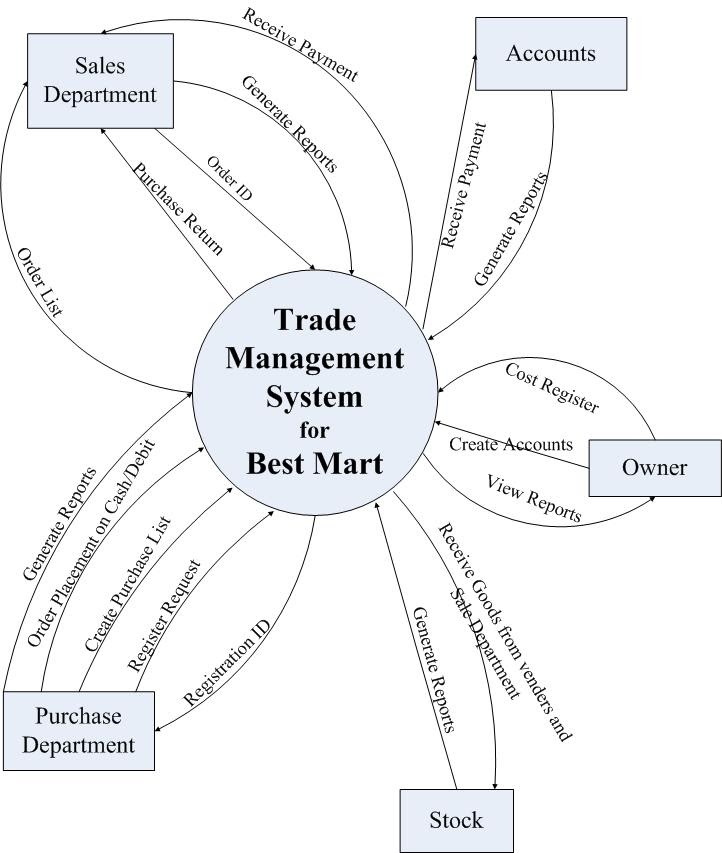

Context Level DFD

Level 0’ DFD
